DTL-9輪輻式傳感器
產品簡介：
DTL-9輪輻式傳感器，抗偏載能力強，抗過載效果好，精度高，性能穩定可靠，安裝容易使用方便。防潮、防塵等級到達IP68，可用于惡劣環境。
適用于制作汽車衡，料斗秤，配料秤等測力稱重系統。

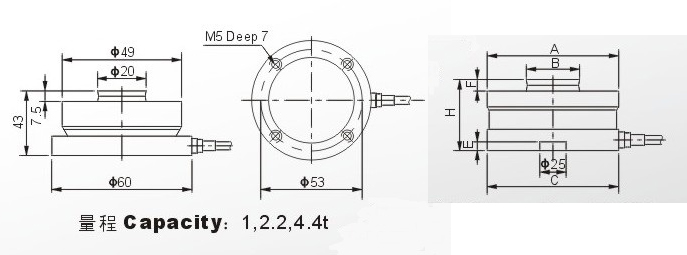

量程Capacity 尺寸Size mm | t | ||||||||||
10 | 15 | 22 | 33 | 47 | 68 | 100 | 150 | 220 | 330 | 470 | |
A | 74.0 | 75.0 | 75.0 | 95.0 | 130.0 | 130.0 | 150.0 | 150.0 | 225.0 | 225.0 | 270.0 |
B | 30.0 | 30.0 | 30.0 | 40.0 | 60.0 | 60.0 | 70.0 | 70.0 | 100.0 | 100.0 | 120.0 |
C | 75.0 | 75.0 | 75.0 | 95.0 | 130.0 | 130.0 | 150.0 | 150.0 | 225.0 | 225.0 | 270.0 |
E | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 | 10.0 | 10.0 | 10.0 |
F | 6.5 | 6.5 | 6.5 | 10.0 | 14.0 | 14.0 | 16.0 | 16.0 | 24.0 | 24.0 | 28.0 |
H | 50.0 | 50.0 | 50.0 | 65.0 | 75.0 | 85.0 | 90.0 | 100.0 | 130.0 | 145.0 | 170.0 |
